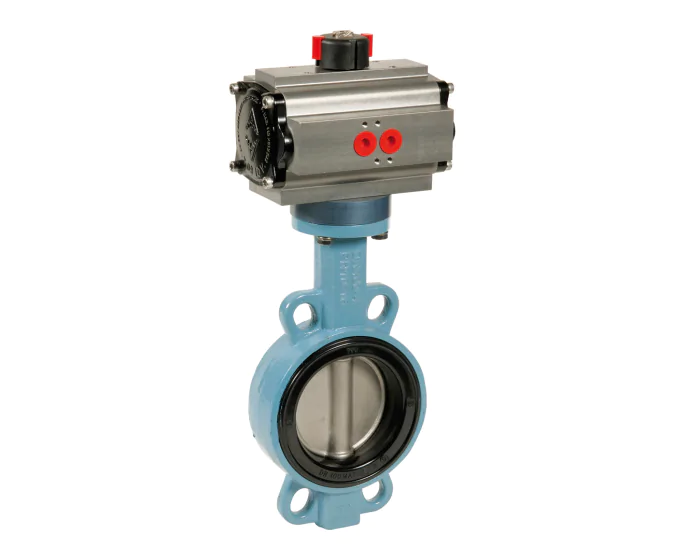

The 1141 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN200. It is a wafer type, PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| Seat | NBR - Gas |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 5 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric Double acting 32 - 40 | 260593015100 | S1003285 |
€209.66
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return 32 - 40 | 260593016101 | S1003286 |
€244.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 260594015100 | S1003287 |
€221.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 260594016101 | S1003288 |
€248.23
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260595015101 | S1003289 |
€247.26
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260595016102 | S1003290 |
€300.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 260596015101 | S1003291 |
€270.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 260596016102 | S1003292 |
€312.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 260597015102 | S1003293 |
€302.33
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 260597016103 | S1003294 |
€357.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 260598015102 | S1003295 |
€350.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 260598016104 | S1003296 |
€449.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 260599015103 | S1003297 |
€397.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 260600015104 | S1003298 |
€554.80
(excl. btw)
|
add to cart |
